ตราสินค้า :
YAMAWA หมวดสินค้า : A TOOLS เครื่องมือ
ต๊าปรูทะลุสีดำ HC+PO-OX, HC-PO-OX

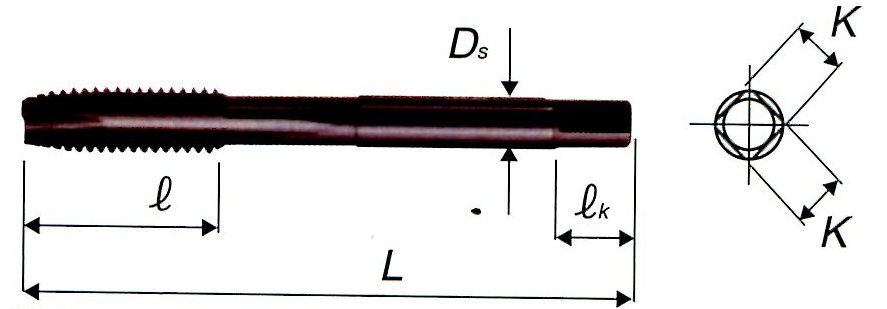

Spiral Pointed Taps For High Carbon Steels
 |
|
| MODEL | Overall length (mm) | Thread length (mm) | Thread Neck length (mm) | Shank dia (mm) |
| M 1.4x0.3 | 36 | 5.4-8 | - | 3 |
| M 1.6x0.35 | 36 | 6.3-8 | - | 3 |
| M 1.7x0.35 | 36 | 6.3-8 | - | 3 |
| M 2x0.4 | 42 | 7.2-9.5 | 12-15 | 3 |
| M 2.5x0.45 | 46-44 | 8.1-9.5 | 14-16 | 3 |
| M 2.6x0.45 | 46-44 | 8.1-9.5 | 14-16 | 3 |
| M 3x0.5 | 46 | 9-11 | 14-18 | 4 |
| M 4x0.7 | 52 | 11-13 | 17-20 | 5 |
| M 5x0.8 | 60 | 13-16 | 22-25 | 5.5 |
| M 6x1 | 62 | 15-19 | 26-28 | 6 |
| M 8x1.25 | 70 | 19-22 | - | 6.2 |
| M 10x1.5 | 75 | 23-24 | - | 7 |
| M 10x1.25 | 75 | 23-24 | - | 7 |
| M 12x1.75 | 82 | 26-29 | - | 8.5 |
| M 12x1.5 | 82 | 26-29 | - | 8.5 |
| M 12x1.25 | 82 | 26-29 | - | 8.5 |
| M 14x2 | 88 | 26-30 | - | 10.5 |
| M 14x1.5 | 88 | 26-30 | - | 10.5 |
| M 16x2 | 95 | 26-32 | - | 12.5 |
| M 16x1.5 | 95 | 26-32 | - | 12.5 |
| M 18x2.5 | 100 | 33-37 | - | 14 |
| M 18x1.5 | 100 | 33-37 | - | 14 |
| M 20x2.5 | 105 | 33-37 | - | 15 |
| M 20x1.5 | 105 | 33-37 | - | 15 |
| M 22x2.5 | 115 | 33-38 | - | 17 |
| M 24x3 | 120 | 39-45 | - | 19 |
