MODEL | ขนาด | กำลังไฟฟ้า | อัตราเจาะกระแทกต่อนาที (ipm) | ความยาวรวม | ขนาด (ยาวxกว้างxสูง) | น้ำหนัก (กก.) |

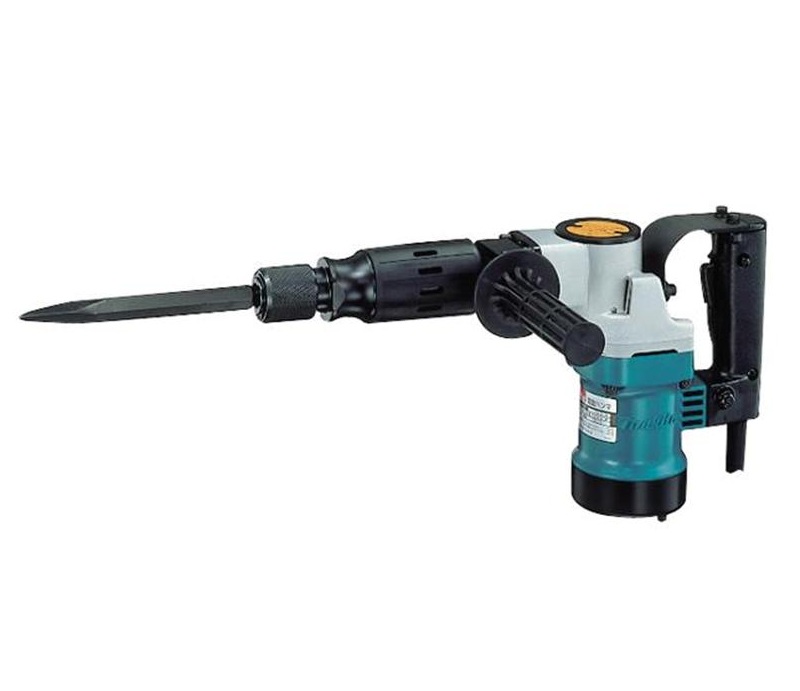

HM0810T,HM0810TA | 17mm (11/16") | 900W | 2,900 | 428mm (16-7/8") | - | 6.0 |

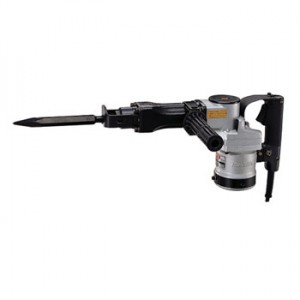

HM1201 | 21mm (13/16") | 1,130W | 2,000 | 480mm (18-7/8") | - | 9.1 |

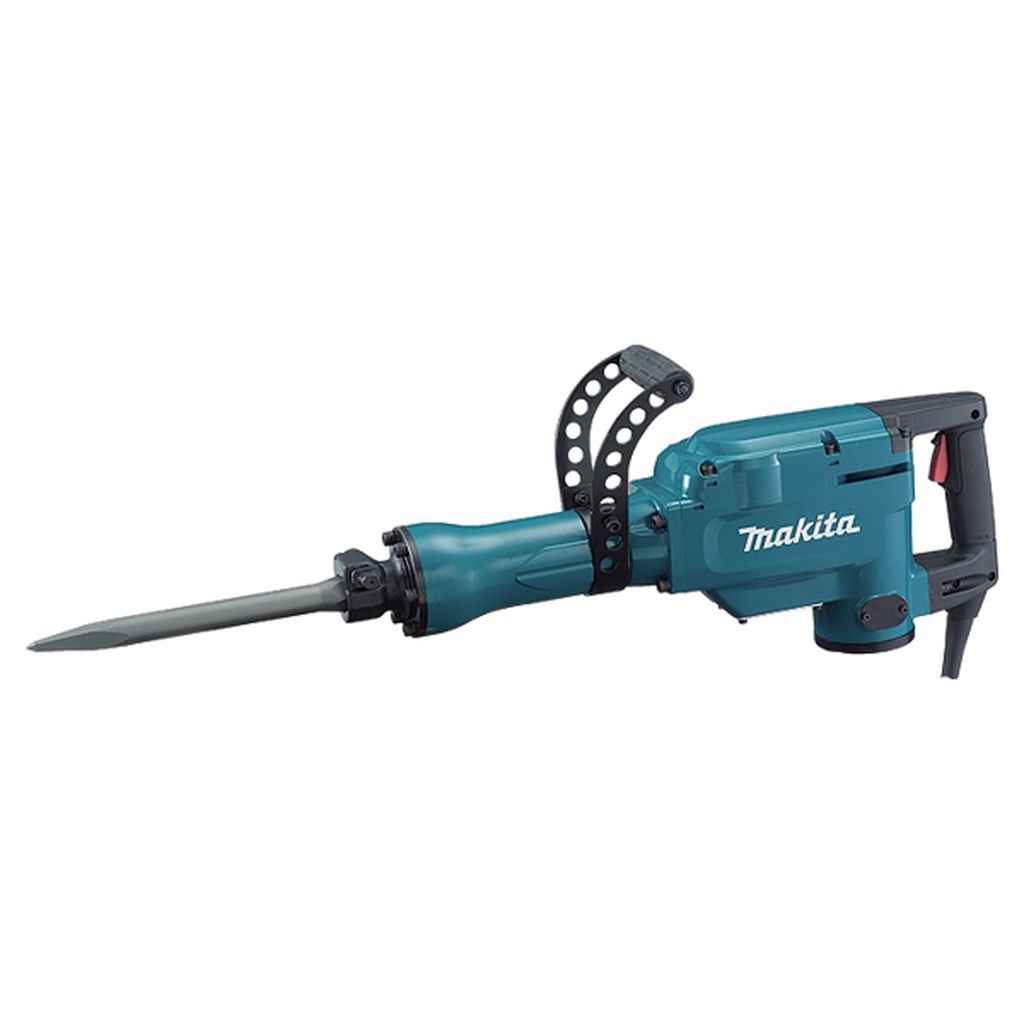

HM1306 | 30mm (1-3/16") | 1,510W | 1,450 | - | 652x121x231mm (25-3/4"x4-3/4"x9-1/8") | 15.1 |

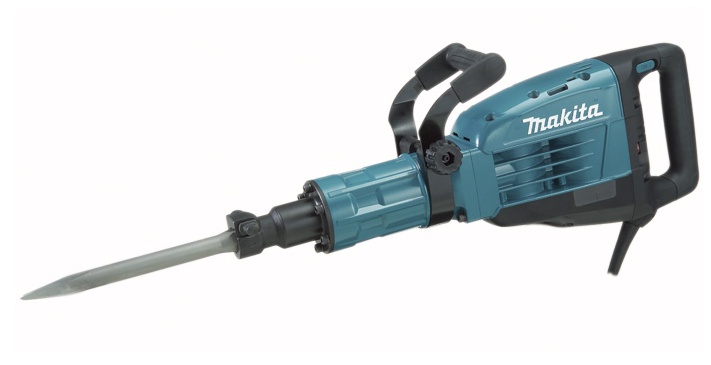

HM1307C | 30mm (1-3/16") | 1,510W | 730-1,450 | - | 715x129x266mm (28-1/8"x5-1/8"x10-1/2") | 15.3 |

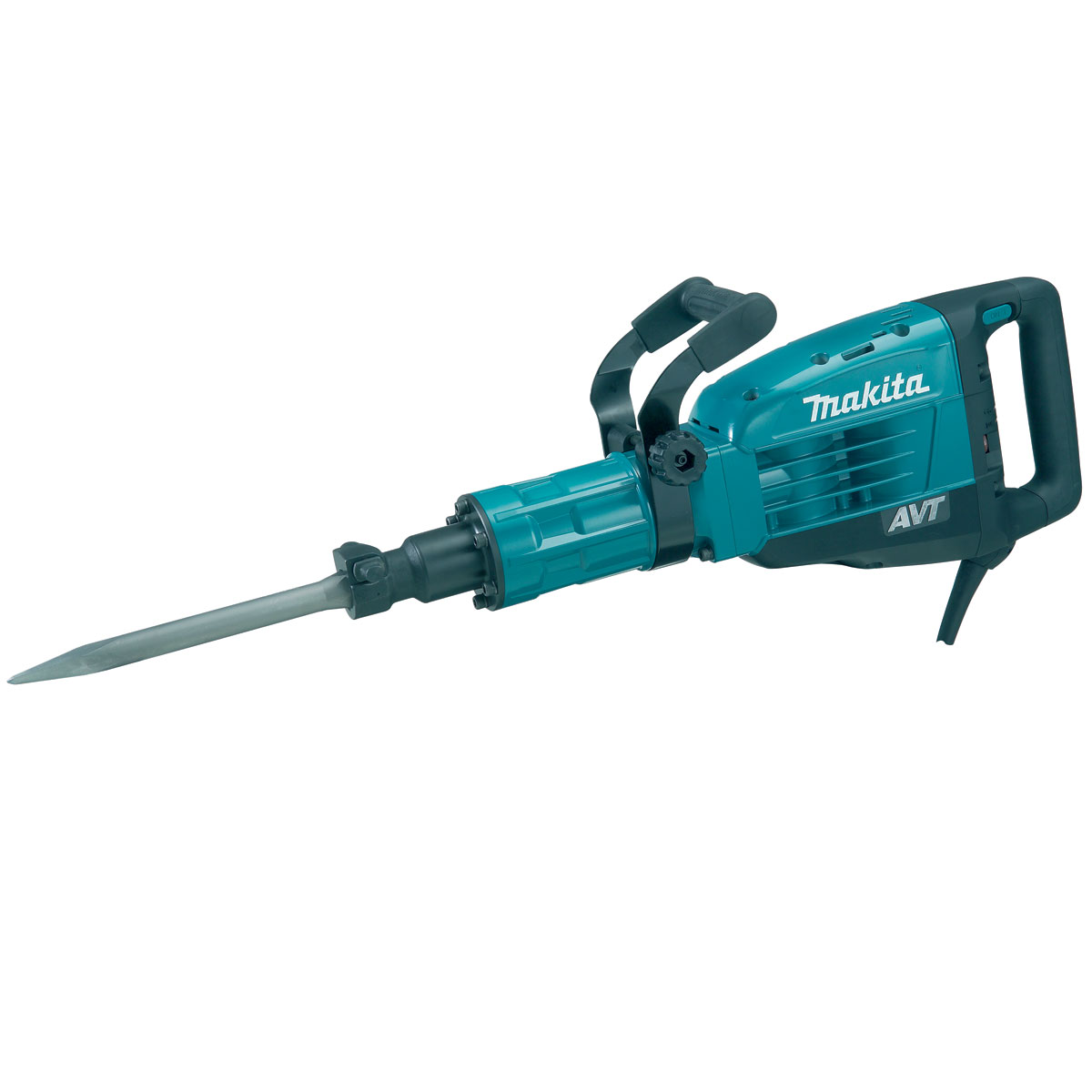

HM1317C | 30mm (1-3/16") | 1,510W | 730-1,450 | - | 715x129x266mm (28-1/8"x5-1/8"x10-1/2") | 17.0 |

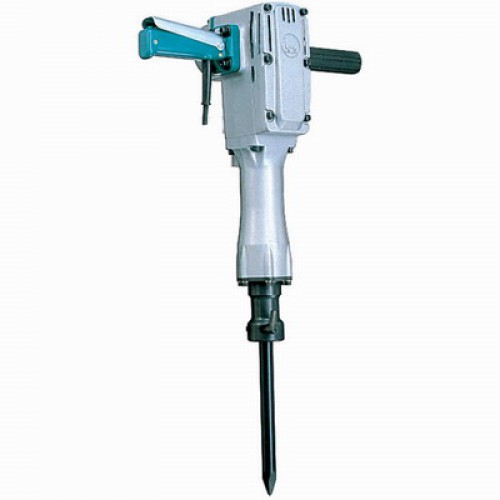

HM1400 | 30mm (1-3/16") | 1,240W | 1,200 | 613mm (24-1/8") | - | 18.1 |

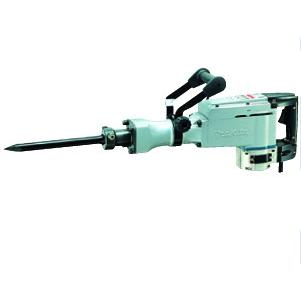

HM1500 | 30mm (1-3/16") | 1,470W | 1,300 | 647mm (25-1/2") | - | 17.8 |

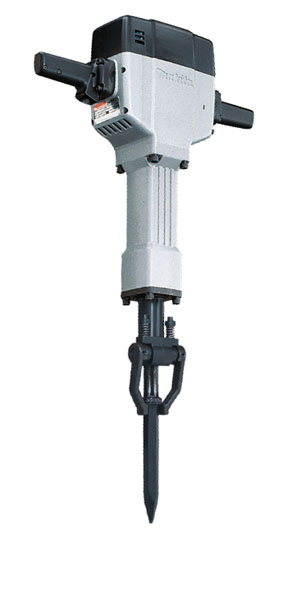

HM1800 | 28.6mm (1-1/8") | 1,700W | 1,000 | 818mm (32-1/4") | - | 29.1 |
HM1801,HM1810 | 28.6mm (1-1/8") | 2,000W | 1,100 | - | 824x148x624mm (32-1/2"x5-7/8"x24-1/2") | 29.7,32.3 |
